Welcome to the Baseball Equipment Cart page! Are you a coach or parent of baseball or softball players? • Do you lug a lot of equipment to the baseball or softball field? • This cart can save you a lot of work • It will easily transport most or all of your equipment from your pickup truck to the field • Download free plans, pictures, and Instructions so that you can build your own cart!

The Cart

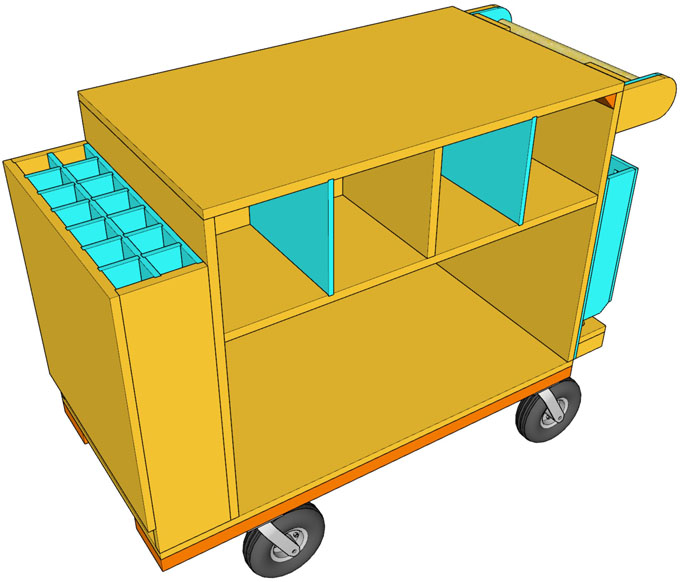

SketchUp Drawing of Cart Overview

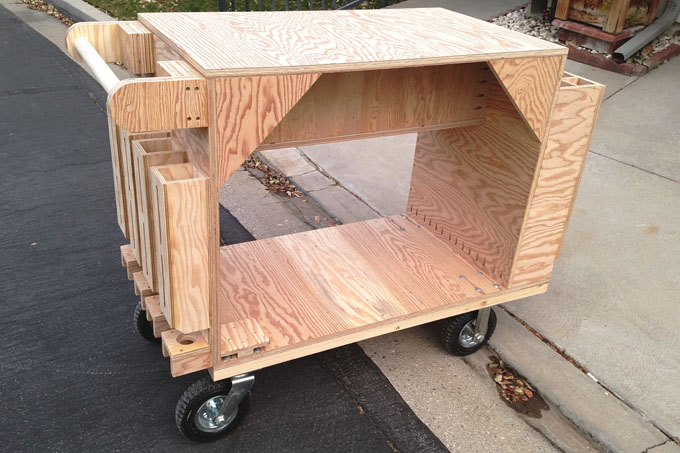

Photograph of Empty Cart from Different Angle

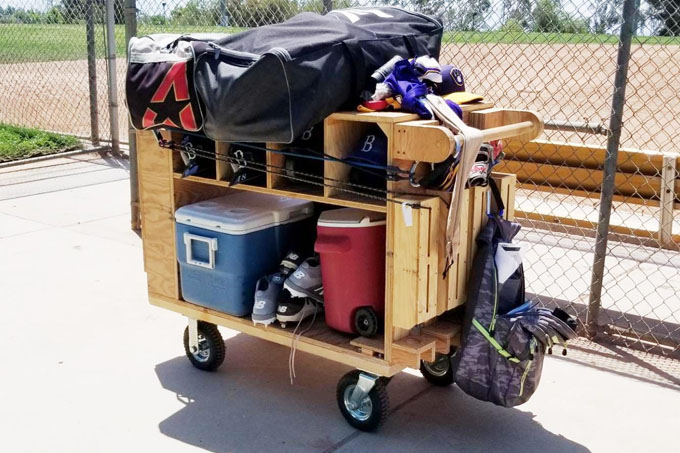

Cart Loaded with Equipment

The Features

The cart has a lot of great features. Here are some of them:

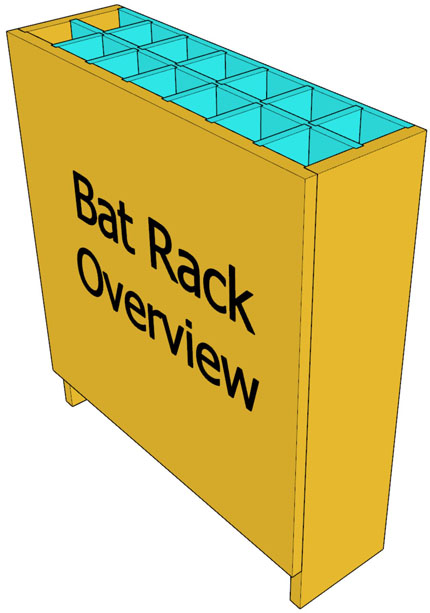

  • A rack for 14 bats

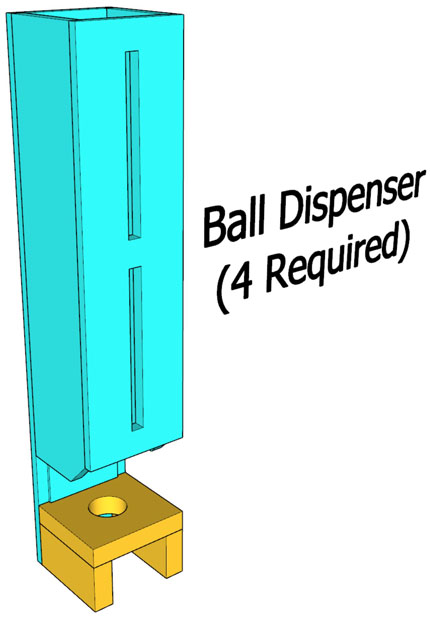

  • Dispensers for 24 baseballs
  • Spaces for 4 helmets
  • Room on the top for an equipment bag
  • Room on the bottom for an ice chest and other items. (Move the ice chest to the top when you get to the field.)
  • 8” pneumatic casters for smooth sailing over rough ground
  • A comfortably large, 1 1/2” diameter handle to ease maneuvering of the cart
  • You can use the top as a writing surface during the game
  • Total height: 42 25/32"
  • Total width: 23 1/2"
  • Total length: 54 7/32"
  • Height to center of handle: 39 7/16"
  • Space for your hands in front of the handle: 2 1/2"
  • Bat enclosure height: 26"
  • Size of Each Helmet Space: 9 1/4”W x 10”H x 12 3/4"D
  • Size of Area Below the Helmets: 38 21/32”L x 23 1/2”W x 19”H
  • Empty weight: about 150 lbs.

The Materials Used

  • All of the plywood is marine exterior grade: 2 sheets of 3/4" and 1 sheet of 1/2".
  • The cart rolls on four 8" pneumatic casters available from Harbor Freight
  • A pair of 2x6 Douglas fir or spruce runners are placed between the bottom of the carcass and the casters for strength
  • Screws, bolts, Loctite, and waterproof glue hold everything together

Additional Views

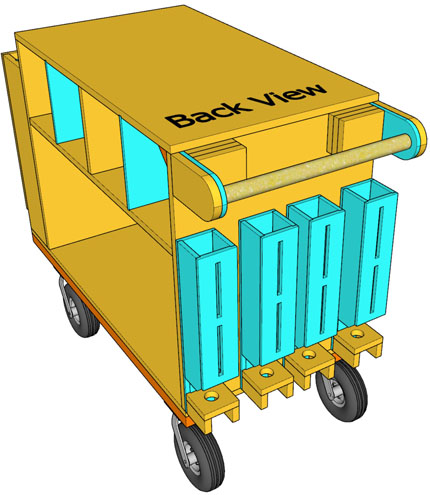

Back View Drawing of Cart

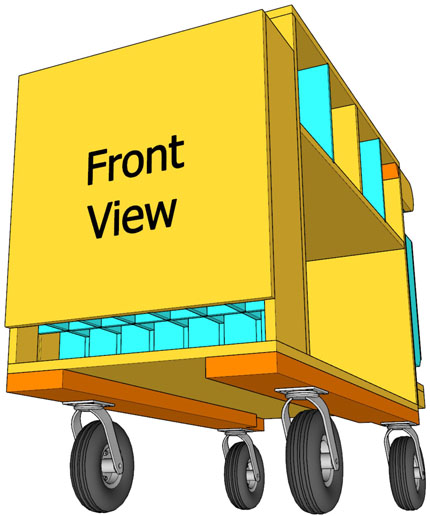

Front View Drawing of Cart

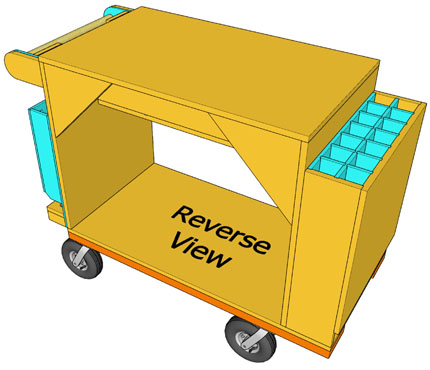

Reverse View Drawing of Cart

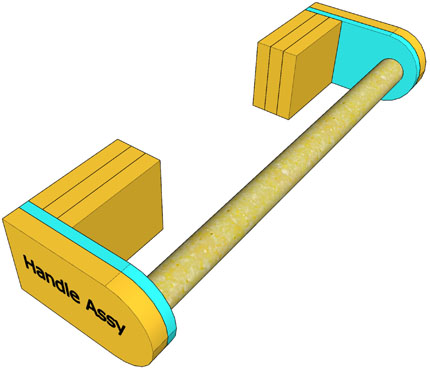

Handle Assembly Drawing
Reverse View Drawing of Cart
Handle Assembly Drawing

Download Free Plans, Pictures, and Instructions

Maybe you can use the ideas and information provided here and in the download file to build your own version of the Baseball Equipment Cart. If you think you might want to build it, BE SURE TO READ THE "INSTRUCTIONS.PDF" FILE that's included in the free, downloadable ZIP file.

The ZIP file contains a SketchUp drawing with all dimensions, an equivalent PDF file for those who don't use SketchUp, a full set of Instructions, cutting diagrams, cut lists, and pictures.

Click Here for the Downloadable ZIP file (6.04MB): Baseball_Cart_12.zip
